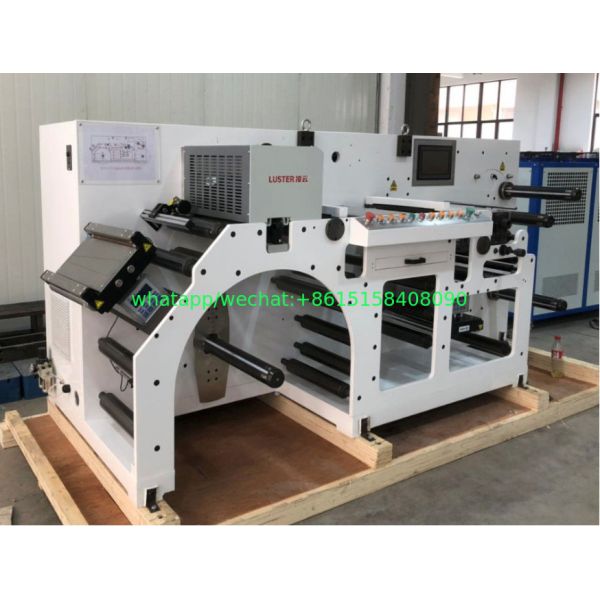

High Speed Inspection And Slitting Line Paper , Adhesive Label , PVC , PE And PP

Name: High Speed Inspection And Slitting Line Paper Adhesive Label PVC PE And PP
Brand: Best
Price: 1 USD

Brand Name : Best

Model Number : LCPT-370

Certification : CE

Place of Origin : Ruian

MOQ : 1

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5sets/month

Delivery Time : 40-60 working days

Packaging Details : fumigation wooden

Model : LCPT-370

name : inspection and slitting machine

feature : high speed

apply : Paper, Adhesive Label, PVC, PE And PP

Contact Now

High Speed Inspection And Slitting Line Paper , Adhesive Label , PVC , PE And PP

Character

Inspection platform system is driven by full servo motor system, both rewind and unwind with taper tension control system, international web guide system, PLC control system, it is suitable for paper, adhesive label, PVC, PE and PP etc.

Technical Parameters

Model	LCPT-370	LCPT-480	LCPT-550
Slitting speed	300m/min	300m/min	300m/min
Max width	370mm	480mm	550mm
Effective detection width	350mm	460mm	530mm
Max unwind dia.	800mm	800mm	800mm
Max up rewind dia.	450mm	450mm	450mm
Max down rewind dia.	800mm	800mm	800mm
Min slitting width	15mm	15mm	15mm
Razor knife	Optional	Optional	Optional
Air source	0.8mpa	0.8mpa	0.8mpa
Total power	11kw	14kw	16kw
Dimension(LMH)	301512501380mm	301513301380mm	301514001380mm
Weight	1.8T	2T	2.2T
